Suction Cup Feed Spray Gun W 106S, Suction Feed Spray Gun W 206S, Manufacturer, Supplier, Distributor, Pune, Maharashtra, India

OSAKA Suction Cup Spray Guns
osakaPaintSprayGun106
W 106S
Know more
Suction Cup Spray Guns
W 206S
Know more
Request A Quote
Suction Cup Spray Guns
Suction Cup Spray Guns

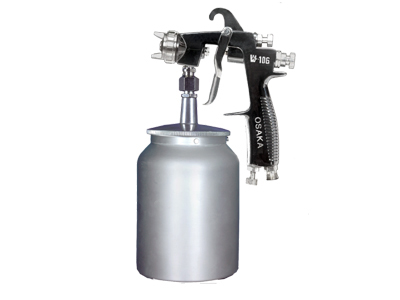

Suction Cup Feed Spray Gun W 106S
Request A Quote

Suction Feed Spray Gun Model: W 106S
This gun is having paint feeding cup from the bottom side of the gun. Paint gets sucked due to venturi action of compressor air.

Centrally balanced suction feed cup enables painters to operate gun easily from bottom side of the jobs without interruption of cup. Aluminium cup ensures rigid handling during operation of painting.

Technical Specification
  • Type: Suction Feed Type
  • Nozzle: 1.0 / 1.3 mm / 1.5 mm
  • Suction Cup: Aluminium
  • Cup Capacity: 500 ml
  • Air Pressure: 2-4 Kgf/cm²
  • Air Consumption: 115 LPM
  • Fluid Output: 270 ml
  • Pattern Width: 310 mm
  • Air Inlet: 1/4 " BSP
  • Fluid Inlet: 1/4 " BSP
  • Weight of Gun: 350 gms
Suction Cup Spray Guns

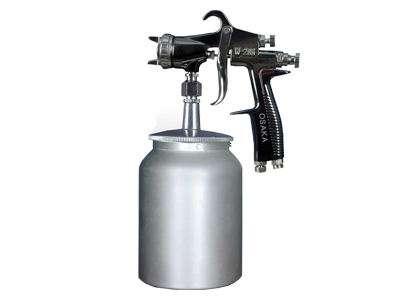

Suction Feed Spray Gun W 206S
Request A Quote

This gun is having paint feeding cup from the bottom side of the gun.

Paint gets sucked due to venturi action of compressor air.

Centrally balanced suction feed cup enables painters to operate gun easily from bottom side of the jobs without interruption of cup. Aluminium cup ensures rigid handling during operation of painting

Technical Specification
  • Type: Suction Feed Type
  • Nozzle: 1.3 mm
  • Suction Cup: Aluminium
  • Cup Capacity: 100 ml
  • Air Pressure: 3-5 Kgf/cm²
  • Air Consumption: 175 LPM
  • Fluid Output: 350 ml
  • Pattern Width: 440 mm
  • Air Inlet: 1/4 " BSP
  • Fluid Inlet: 3/8 " BSP
  • Weight of Gun: 450 gms
