Pneumatic Stirrer / Agitator

  • Home
  • Pneumatic Stirrer / Agitator

Pneumatic Stirrer Four Leg Stand TI - 20, Pneumatic Stirrer Slide Stand TI - 50, Heavy Duty Pneumatic Agatator TI - HDG 2700, Pneumatic Stirrer Gear Type Hand Operated, Pneumatic Stirrer TI - 2700, Pneumatic Stirrer Vane Type TI - V 20, Pneumatic Stirrer Vane Type TI - V 200, Pneumatic Stirrer Vane Type TI - V 1000, Manufacturer, Supplier, Distributor, Pune, Maharashtra, India.


Paint stirrer is operated on pneumatic compressor air, for homogeneous mixing of paint , to avoid settling heavy particles, metallic particles, resin, pigmentation etc. at the bottom of the container. Stirrer can be mounted on stand, pressure Feed container.
Pneumatic Stirrer / Agitator
Pneumatic Stirrer
Pneumatic Stirrer Four Leg Stand TI - 20
Know more
Pneumatic Stirrer
Pneumatic Stirrer Slide Stand TI - 50
Know more
Pneumatic Stirrer
Heavy Duty Pneumatic Agatator TI - HDG 2700
Know more
Pneumatic Stirrer
Pneumatic Stirrer Gear Type Hand Operated
Know more
Pneumatic Stirrer
Pneumatic Stirrer TI - 2700
Know more
Pneumatic Stirrer
Pneumatic Stirrer Vane Type TI - V 20
Know more
Pneumatic Stirrer
Pneumatic Stirrer Vane Type TI - V 200
Know more
Pneumatic Stirrer
Pneumatic Stirrer Vane Type TI - V 1000
Know more
Request A Quote
Pneumatic Stirrer / Agitator
Pneumatic Stirrer

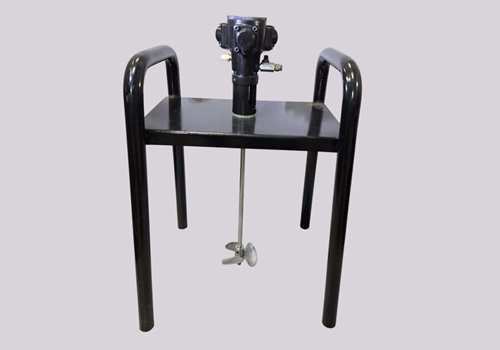

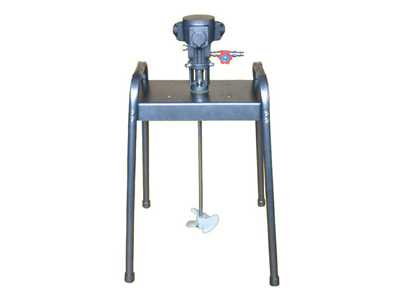

Pneumatic Stirrer Four Leg Stand TI - 20
Request A Quote
Technical Specification
  • Model: TI - 20
  • Air Supply: 2-4 Kgf/Cm2
  • Capacity: 0.5 HP
  • Max Speed: 700 RPM
  • Air Com.: 2 - 4 CFM
  • Shaft Dia.: 10 mm
  • Shaft Length: 425 mm
  • Air Conn.: 1/4" BSP
  • Type: Rotary
  • Impeller Dia.: 75 mm
  • Mounting: 4 Leg Stand
  • Tank Capacity: 20 Liter
Pneumatic Stirrer

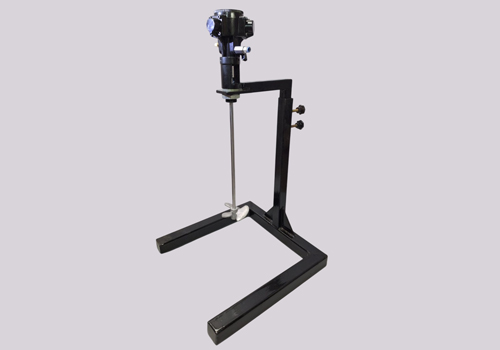

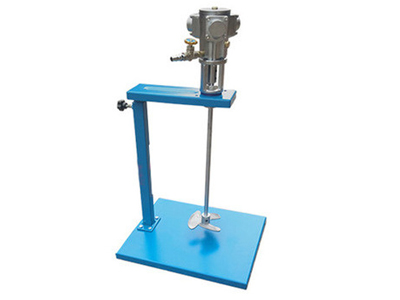

Pneumatic Stirrer Four Leg Stand TI - 50
Request A Quote
Technical Specification
  • Model: TI - 50
  • Air Supply: 2-4 Kgf/Cm2
  • Capacity: 0.5 & 1.5 HP
  • Max Speed: 1700 RPM
  • Air Com.: 2 - 4 CFM
  • Shaft Dia.: 10 mm
  • Shaft Length: 520 mm
  • Air Conn.: 1/4" BSP
  • Type: Rotary
  • Impeller Dia.: 90 mm
  • Mounting: Slide Stand
  • Tank Capacity: 30-50 Liter
Pneumatic Stirrer

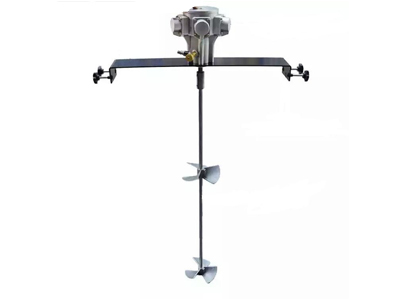

Heavy Duty Pneumatic Agatator TI - HDG 2700
Request A Quote
Technical Specification
  • Model: TI - HDG 2700
  • Air Supply: 3-5 Kgf/cm2
  • Capacity: 1.5 HP
  • Max Speed: 1800 RPM
  • Air Com.: 4 CFM
  • Shaft Dia.: 12 mm
  • Shaft Length: 810 mm
  • Air Conn.: 1/4" BSP
  • Type: Rotary
  • Impeller Dia.: 120 mm
  • Mounting: On Tank
  • Tank Capacity: 100-200 L
Pneumatic Stirrer

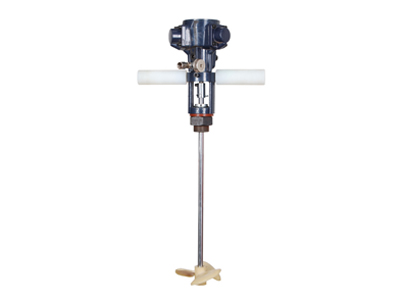

Pneumatic Stirrer Gear Type Hand Operated
Request A Quote
Technical Specification
  • Model: Hand Operated Stirrer
  • Air Supply: 3-5 Ggf/Cm2
  • Capacity: 0.5 HP
  • Max Speed: 2700 RPM
  • Air Com.: 3 - 4 CFM
  • Shaft Dia.: 10 mm
  • Shaft Length: 415 mm
  • Air Conn.: 1/4" BSP
  • Type: Rotary
  • Impeller Dia.: 90 mm
  • Mounting: Hand Held
  • Tank Capacity: 20-50 Liter
Pneumatic Stirrer

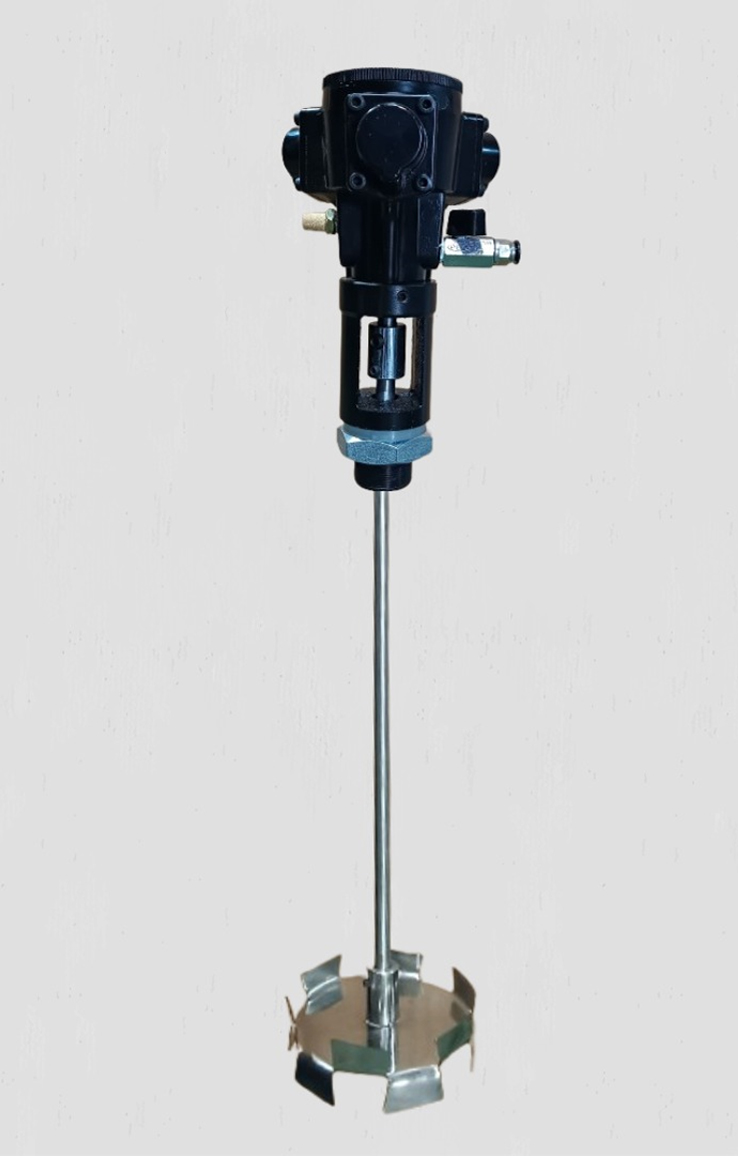

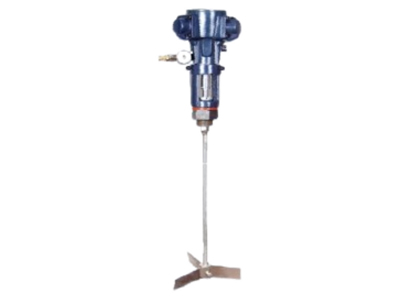

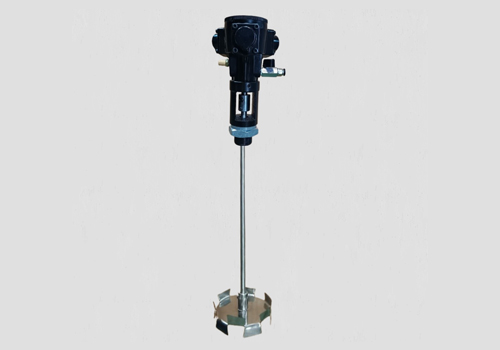

Pneumatic Stirrer TI - 2700
Request A Quote
Technical Specification
  • Model: TI - 2700
  • Air Supply: 3-5 Ggf/Cm2
  • Capacity: 1.5 HP
  • Max Speed: 2700 RPM
  • Air Com.: 3 - 4 CFM
  • Shaft Dia.: 12 mm
  • Shaft Length: 810 mm
  • Air Conn.: 8 mm PU
  • Type: Rotary
  • Impeller Dia.: 150 mm
  • Mounting: At Buyer End
  • Tank Capacity: 200-1000 L
Pneumatic Stirrer

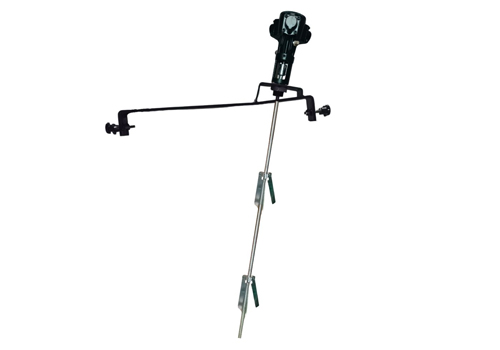

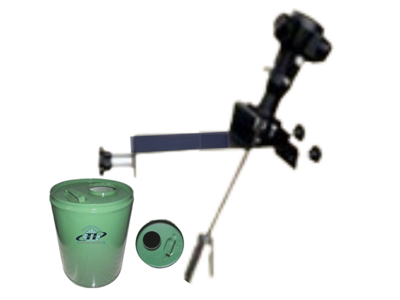

Pneumatic Stirrer Vane Type TI - V 20
Request A Quote
Technical Specification
  • Model: TI - V 20
  • Air Motor: 0.5 HP Pneumatic
  • Max Speed: 1700 RPM (Variable)
  • Mounting: 20 / 50 Liter Container
  • Stirrer Rod Lenght: 435 mm
  • Stirrer Rod: Dia. 10 mm
  • Impeller: Moveable, Paddle Type, Folding
  • Impeller Diameter: Dia 80mm Open & 75 mm Closed
  • MOC of Shaft & Blads: SS - 304 / 316
  • Air Input: ID 8 mm X OD 10 mm
  • Air Pressure: 3 - 4 Kgf/Cm2
  • Air Volume: 3 CFM
Pneumatic Stirrer

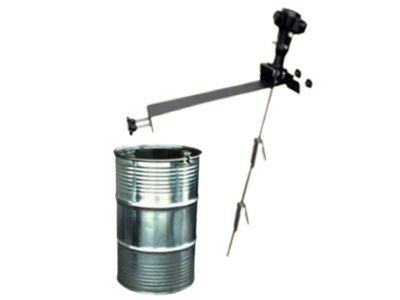

Pneumatic Stirrer Vane Type TI - V 200
Request A Quote
Technical Specification
  • Model: TI - V 200
  • Air Motor: 1.5 HP Pneumatic
  • Max Speed: 2700 RPM (Variable)
  • Mounting: 220 Liter Container
  • Stirrer Rod Lenght: 800 mm
  • Stirrer Rod: Dia. 12 mm
  • Impeller: Moveable, Paddle Type, Folding
  • Impeller Diameter: Dia 150mm Open & 75 mm Closed
  • MOC of Shaft & Blads: SS - 304 / 316
  • Air Input: ID 8 mm X OD 10 mm
  • Air Pressure: 3 - 5 Kgf/Cm2
  • Air Volume: 4 - 5 CFM
Pneumatic Stirrer

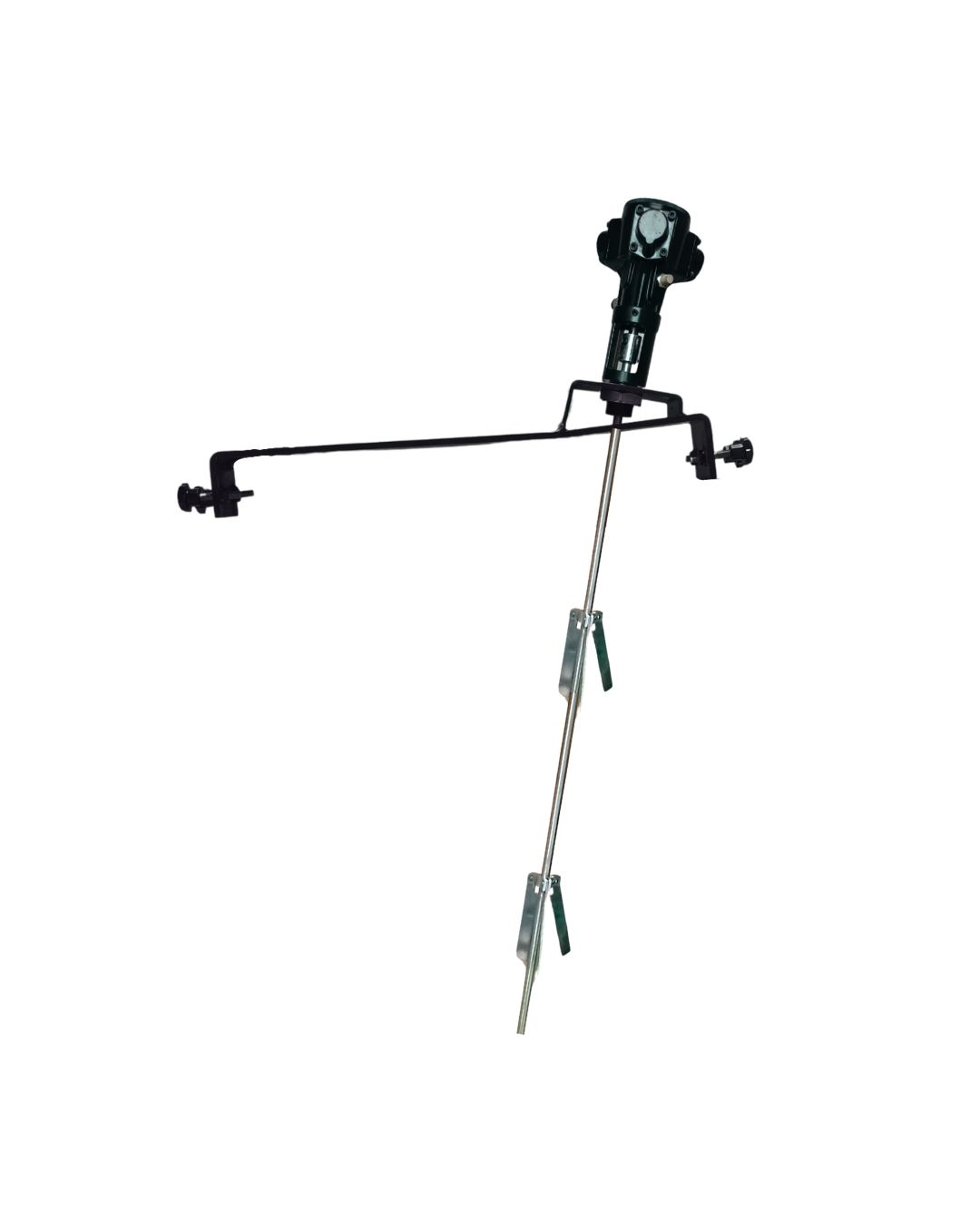

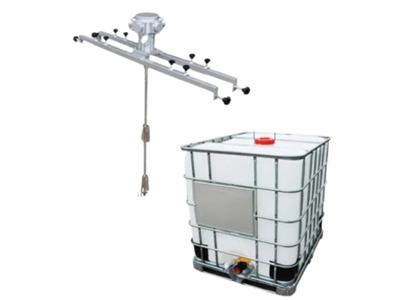

Pneumatic Stirrer Vane Type TI - V 1000
Request A Quote
Technical Specification
  • Model: TI - V 1000
  • Air Motor: 1.5 HP Pneumatic
  • Max Speed: 2700 RPM (Variable)
  • Mounting: 1000 Liter Container
  • Stirrer Rod Lenght: 800 mm
  • Stirrer Rod: Dia. 15 mm
  • Impeller: Moveable, Paddle Type, Folding
  • Impeller Diameter: Dia 180mm Open & 90 mm Closed
  • MOC of Shaft & Blads: SS - 304 / 316
  • Air Input: ID 8 mm X OD 10 mm
  • Air Pressure: 3 - 6 Kgf/Cm2
  • Air Volume: 5 - 7 CFM

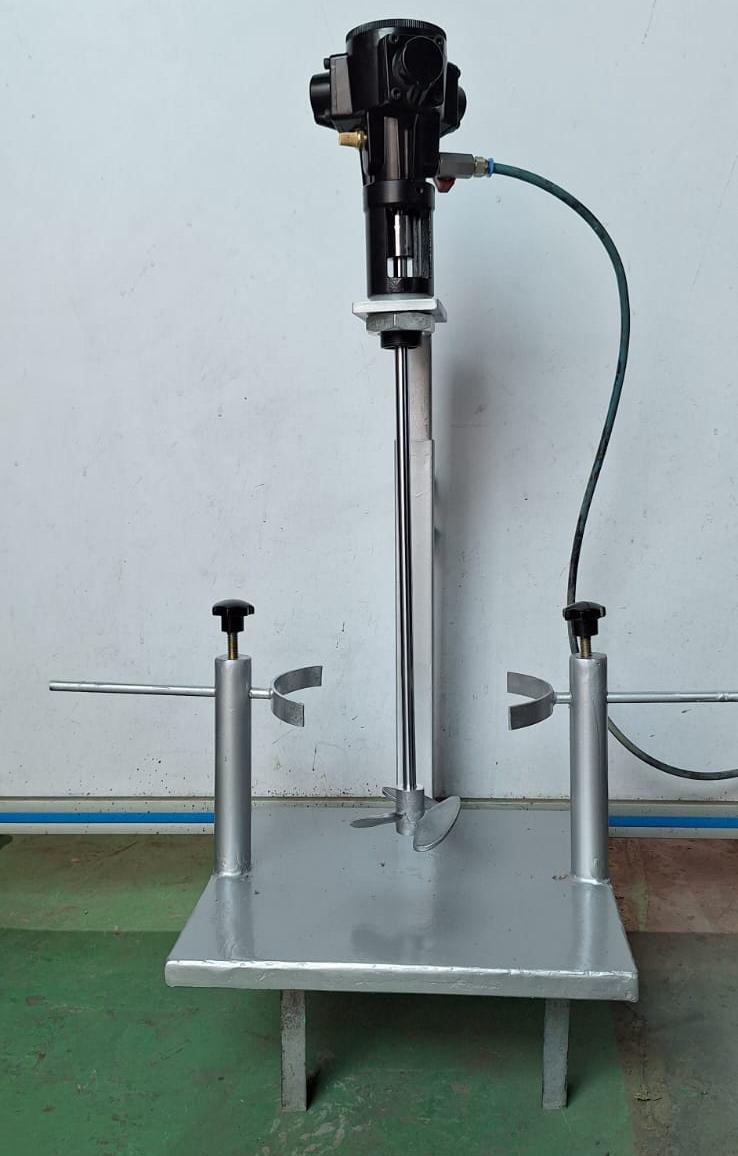

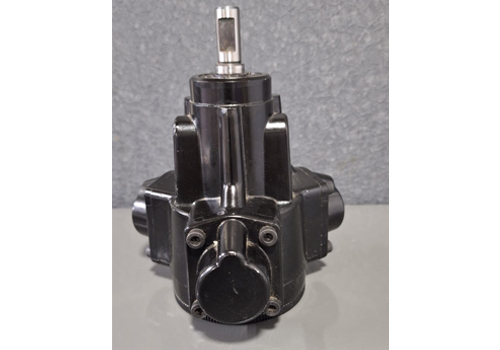

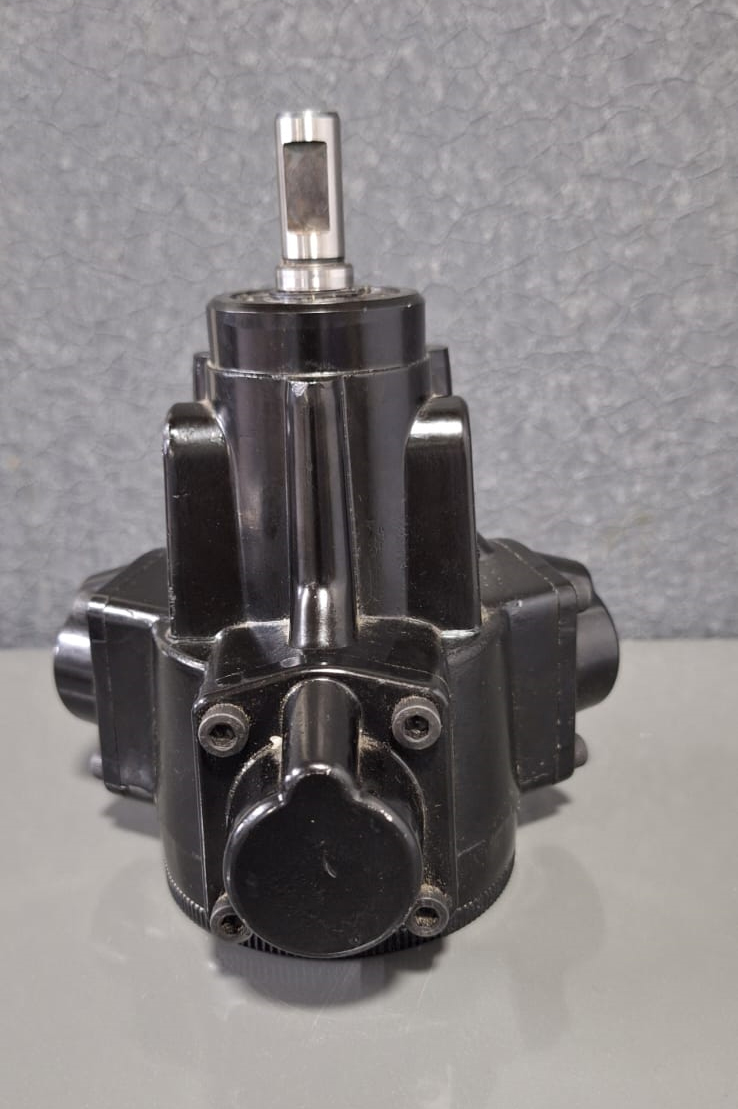

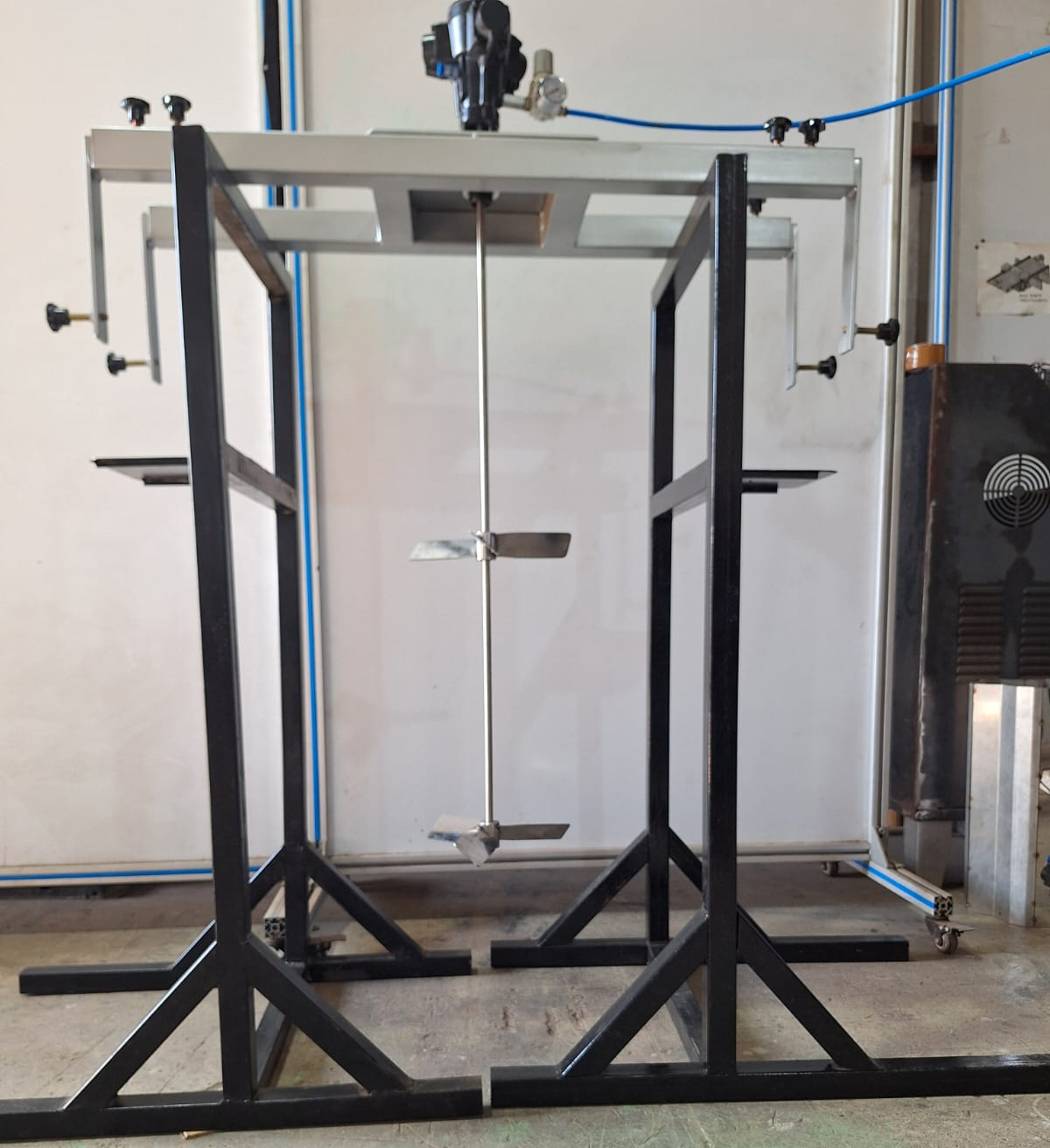

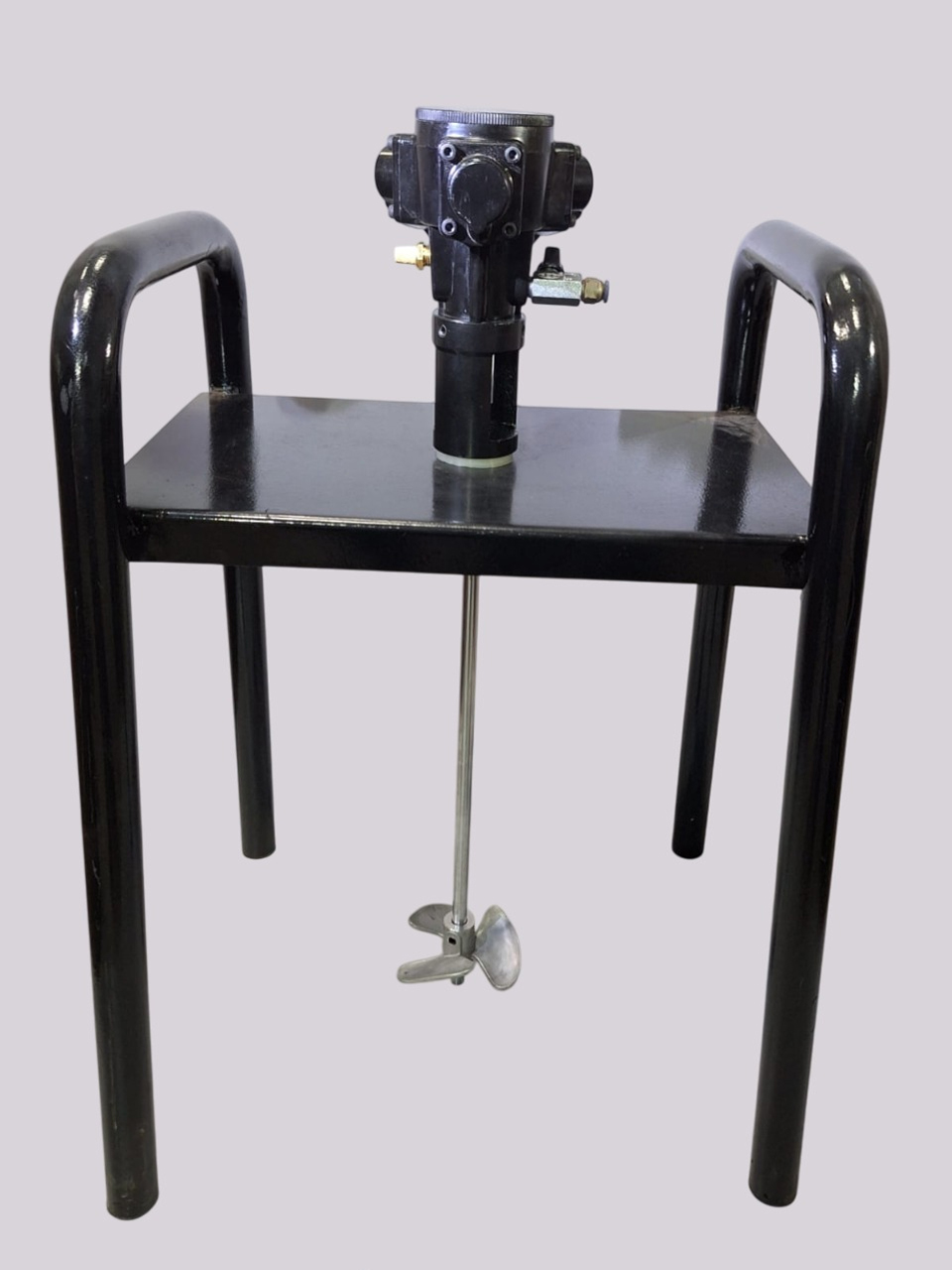

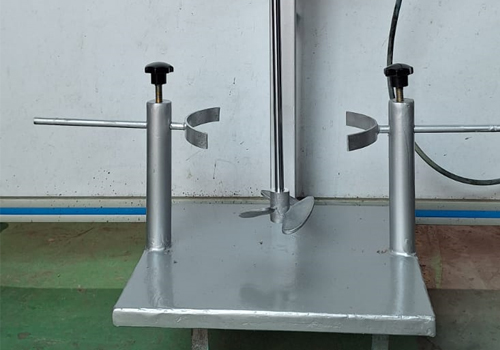

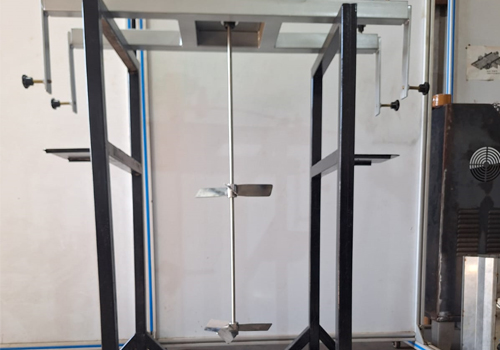

More Photos of Stirrers
