Extension Spray Guns 45 Degree Angle, Round Spray Extension Spray Guns, Automatic Extension Spray Gun Osaka, Tilt Direction Extension Manual Spray Gun, Manufacturer, Supplier, Distributor, Pune, Maharashtra, India.

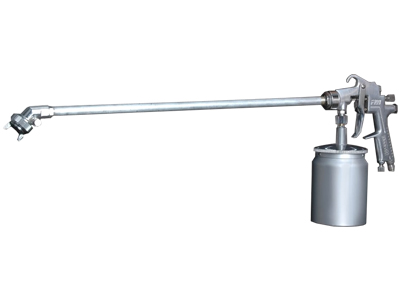

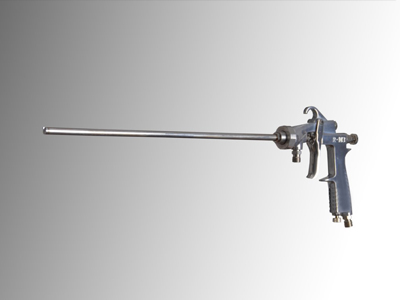

Extension Spray Gun is used for difficult to reach areas, transformer Fins, internal coating of pipes, extended areas of small components. This gun is having straight spray path. it is best for painting cavities of parts inside cylinder painting.

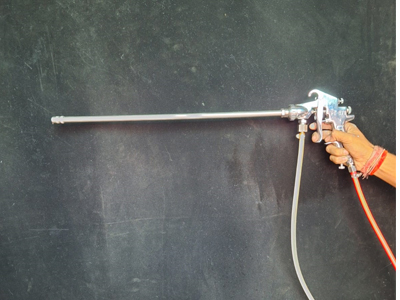

This gun is used manually to spray at small inner areas, whereas not possible with normal gun. Nozzle can be inserted at difficult to reach areas.
Unique feature of this gun is that it posses Round as well as Flat Spray pattern.
Extension Spray Guns
Extension Spray Guns
Extension Spray Gun 45 Degree Angle
Know more
Extension Spray Guns
Round Spray Extension Spray Gun
Know more
Extension Spray Guns
Automatic Extension Spray Gun Osaka
Know more
Extension Spray Guns
Tilt Direction Extension Manual Spray Gun
Know more
Request A Quote
Extension Spray Guns
Extension Spray Guns

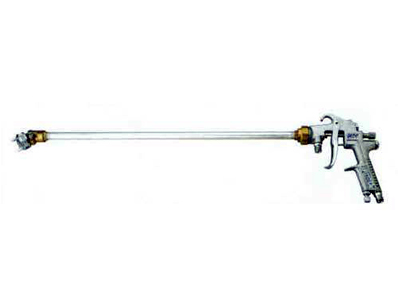

Extension Spray Gun 45 Degree Angle
Request A Quote

Pressure Feed Spray Gun OSAKA: W 106
High performance Spray gun with high transfer efficiency of Paint.

Extension Spray Gun is used for internal coating of pipes having diameter around minimum 5 inches, difficuilt to reach areas with normal gun, Painting of fins/internal parts of Radiator, internal areas of Automobile Axle.

Technical Specification
  • Model: TSC45DEG
  • Max. Pressure: 7 Kgf/cm²
  • Nozzle: 1.5 mm
  • Pattern Width: 4-5 inches at a distance of 4 inches
  • Air Consumption: 8.3 CFM
  • Length: 500 mm
  • Paint Feeding: 500 ml suction cup or paint pump/pressure feed tank
Extension Spray Guns

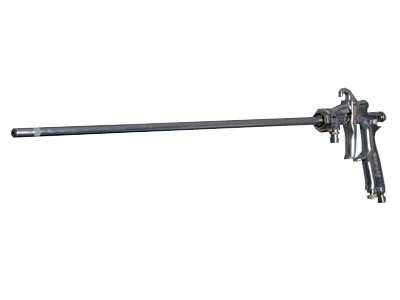

Round Spray Extension Spray Gun
Request A Quote

It is used for internal coating of pipes having diameter around minimum 2-6 inches, difficuilt to reach areas with normal gun, Painting of fins/internal parts of tubes, internal areas of small components.

This gun is used manually to spray at small inner areas, whereas not possible with normal gun. Nozzle can be inserted at difficult to reach areas.

Technical Specification
  • Type: ROUND SPRAY
  • Max. Pressure: 3-4 Kgf/cm²
  • Nozzle: 1.00 mm
  • Pattern Width: 5 inches
  • Air Consumption: 3 CFM
  • Length: 450 mm
  • Paint Feeding: Pressure/Suction
Extension Spray Guns

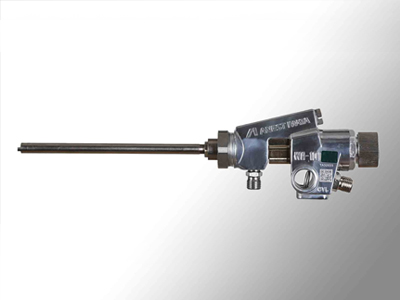

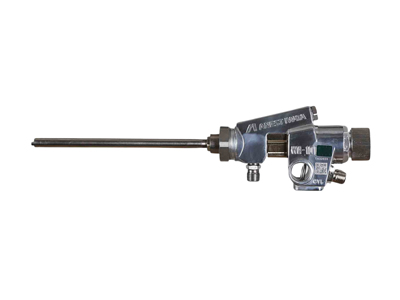

Automatic Extension Spray Gun Osaka
Request A Quote

Automatic Tilt Direction Extension Spray Gun is used for internal coating of pipes having diameter around minimum 1 inches, difficuilt to reach areas with normal gun, Painting of fins/internal parts of tubes, internal areas of small components.

Technical Specification
  • Model: Tilt Direction TI - 9012
  • Extension Pipe Length: 350 mm
  • Std. Nozzle: 0.3 / 0.5 mm
  • Spray Angle: 20 - 25 Degre
  • Air Pressure: 2 - 3 Kgf/Cm2
  • Piston Air Pressure: Max 4 Kgf/Cm2
  • Pattern Width: 1 - 3 Inch
  • Air Consumption: Max 4 CFM
  • Paint Feeding: Pressure
  • Weight Of Gun: 520 Gms
Extension Spray Guns

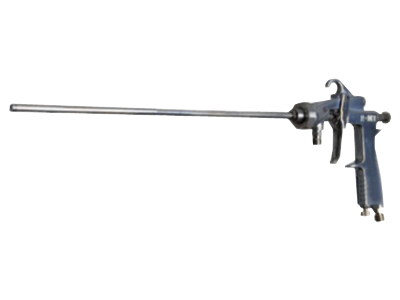

Tilt Direction Extension Manual Spray Gun
Request A Quote

Automatic Tilt Direction Extension Spray Gun is used for internal coating of pipes having diameter around minimum 1 inches, difficuilt to reach areas with normal gun, Painting of fins/internal parts of tubes, internal areas of small components.

Technical Specification
  • Model: Tilt Direction
  • Type: Pressure
  • Std. Nozzle: 0.5 mm
  • Air Pressure: 3 - 4 Kgf/Cm2
  • Air Consumption: 3 CFM
  • Length: 500 mm
  • Pattern Width: 1 - 3 Inch
  • Paint Feeding: Pressure
  • Pattern: Round / Flat
