Gravity Feed Spray Guns

  • Home
  • Gravity Feed Spray Guns

Gravity Feed Spray Guns - W 201, Gravity Feed Spray Guns - W 306, Gravity Feed Spray Guns - NA 2002B, Gravity Feed Spray Guns - NA 2002F, Gravity Feed Spray Guns - NA 2003, Manufacturer, Supplier, Distributor From Pune, Maharashtra, India.

These are extensively used for small spray patterns and are gravity feed spray guns. and reduce atmospheric over-spraying to maintain cleanliness in working area. These have wide ranging applications in touch up, scratch removing, marking, stenciling, small spray width painting and hobby work.
OSAKA Paint Gravity Feed Spray Guns
Gravity Feed Spray Guns
Gravity Feed Spray Guns - W 201
Gravity Feed Spray Guns
Gravity Feed Spray Guns - W 306
Gravity Feed Spray Guns
Gravity Feed Spray Guns - NA 2002B
Gravity Feed Spray Guns
Gravity Feed Spray Guns - NA 2002F
Gravity Feed Spray Guns
Gravity Feed Spray Guns - NA 2003
Gravity Feed Spray Guns
Gravity Feed Spray Guns

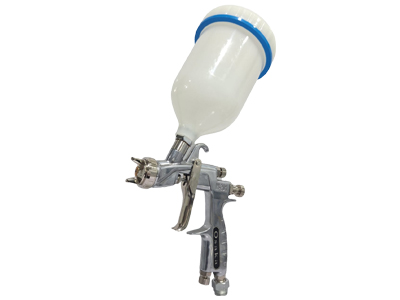

High Performance Gravity Feed Spray Gun W - 201

High Performance Spray Painting Gun. Centre Gravity cup ensures operator balance for easy handling of gun during painting process.

Most widely used in Painting industries due to Ergonomic balance of gun, Higher transfer efficiency, Light weight gun,Stainless Steel fluid path.

Features:

  • Sturdy construction
  • Operator convenience
  • Dependable performance


Technical Specification
  • Model: W-201
  • Type: Gravity
  • Nozzle: 1.5/1.00 mm
  • Operating Air Pressure: 2-3 Kgf/cm²
  • Air Consumption: 145 L/Min
  • Fluid Output: 270/160 Ml/Min
  • Pattern Width: 240 mm
  • Air Inlet: 1/4" BSP
  • Paint Cup: 600 ml cup Nylon/Steel
  • Weight of the Gun: 350 gms
Gravity Feed Spray Guns

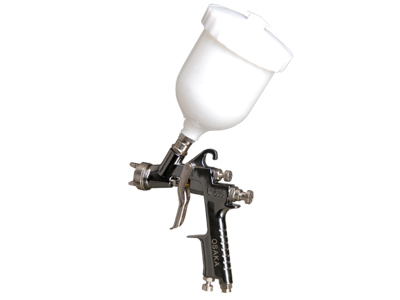

High Performance Gravity Spray Guns W 306

High Performance Spray Painting Gun. Centre Gravity cup ensures operator balance for easy handling of gun during painting process.

Most widely used in Painting industries due to Ergonomic balance of gun, Higher transfer efficiency, Light weight gun,Stainless Steel fluid path.

Features:

  • Sturdy construction
  • Operator convenience
  • Dependable performance


Technical Specification
  • Model: W-306
  • Type: Gravity
  • Nozzle: 1.5/1.00 mm
  • Operating Air Pressure: 2-3 Kgf/cm²
  • Air Consumption: 145 L/Min
  • Fluid Output: 270/160 Ml/Min
  • Pattern Width: 240 mm
  • Air Inlet: 1/4" BSP
  • Paint Cup: 600 ml cup Nylon/Steel
  • Weight of the Gun: 350 gms
Gravity Feed Spray Guns

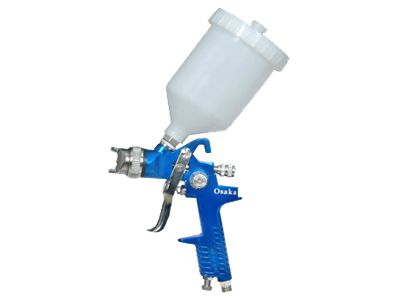

Gravity Feed Spray Gun NA 2002B

Gravity Feed Spray Gun We would like to introduce ourselves as suppliers of High performance Spraying systems.

Our range of products includes: HVLP Spray Painting guns-pressure/gravity type, Airless Spray painting equipment, Electric Airless Spray painting equipment, Electrostatic Liquid Spray Painting equipment, Powder coating equipment, Booth, Oven, Double Diaphragm Pumps, Pressure feed container, Piston Pumps, Pneumatic Stirrer/agitator, Auto Guns, Air brush gun, mini air compressor, paint hoses etc.

Features:

  • Wide range of applications
  • Sturdy construction
  • Ergonomic design.


Technical Specification
  • Model: OSAKA NA - 2002 B
  • Type: Centre Feed
  • Std. Nozzle: 1.4 / 1.7/2.0 mm
  • Air Pressure: 3 - 5 Bar
  • Fluid Output: 275 MI/Min
  • Pattern Width: 260 mm
  • Air Inlet: 1 / 4" BSP
  • Paint Cup: 600 ml Nylon
Gravity Feed Spray Guns

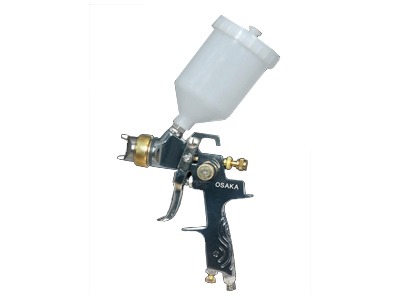

Gravity Feed Spray Gun HVLP NA 2002F

Gravity Feed Spray Gun HVLP We would like to introduce ourselves as suppliers of High performance Spraying painting systems.

Our range of products includes: HVLP Spray Painting guns-pressure/gravity type, Airless Spray painting equipment, Electric Airless Building Spray Painting Equipment, Extension Spray Gun, Electrostatic Liquid Spray Painting equipment, Powder coating equipment, Booth, Oven, Double Diaphragm Pumps, stainless Steel Paint Containers, Pressure feed container, Piston Pumps, Pneumatic Stirrer / Agitator, Auto Guns, Air brush gun, Mini air compressor, paint hoses, Paint Booth Additives etc.


Technical Specification
  • Model: NA 2002F
  • Type: Gravity
  • Standard Nozzle: 1.40 mm
  • Operating Air Pressure: 2-3 Kgf/cm²
  • Air Consumption: 145 L/Min
  • Fluid Output: 270 Ml/Min (Max)
  • Pattern Width: 310 mm
  • Air Inlet: 1/4" BSP
  • Paint Cup: 600 ml cup
  • Weight of the Gun: 480 gms
Gravity Feed Spray Guns

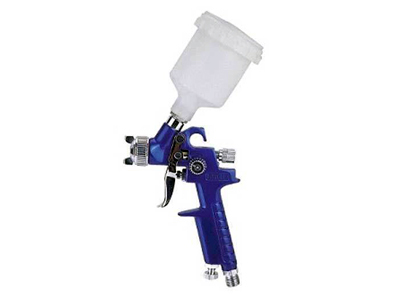

Mini Touch Up Spray Gun NA 2003

Mini Touch Up Spray Gun These are extensively used for small spray patterns and are gravity feed spray guns. and reduce atmospheric over-spraying to maintain cleanliness in working area. These have wide ranging applications in touch up, scratch removing, marking, stenciling, small spray width painting and hobby work.

Features:

  • Wide range of applications
  • Sturdy construction
  • Ergonomic design
  • Wide range of applications
  • Sturdy construction
  • Ergonomic design.


Technical Specification
  • Model: OSAKA NA - 2003
  • Type: Centre Feed
  • Std. Nozzle: 0.8 mm
  • Air Pressure: 1 - 3 Bar
  • Fluid Output: 150 MI/Min
  • Pattern Width: 95 mm
  • Air Inlet: 1 / 4" BSP
  • Paint Cup: 140 ml Nylon
