Pressure Feed Spray Guns

  • Home
  • Pressure Feed Spray Guns

We offer a wide range of OSAKA and Anest Iwata pressure feed spray guns, including models like W-101, W-206, W-71, and W-77. These HVLP pressure feed spray guns deliver excellent atomization, reduced overspray, and smooth finishes, making them ideal for automotive painting, metal coating, wood finishing, and furniture manufacturing. Whether you need a manual pressure feed spray gun, a pneumatic pressure spray gun, or a stainless steel pressure feed gun, we have the solution. Our paint spray equipment includes pressure feed tanks, air compressors, paint pumps, and air hoses, fully compatible with all pressure feed paint guns, Manufacturer, Supplier, Distributor From Pune, Maharashtra, India.

High performance Spray gun with high transfer efficiency of Paint. Mainly suitable for Bigger Jobs & mass production painting work, Continuous spray painting work, This Gun can rotate at any direction during painting, This gun is light weight, Fluid path is Stainless Steel, Air adjusting knob is built on gun itself.
OSAKA Paint Pressure Feed Spray Guns
Pressure Feed Spray Guns
W 101
Know more
Pressure Feed Spray Guns
W 71
Know more
Pressure Feed Spray Guns
W 77
Know more
Pressure Feed Spray Guns
PT 871
Know more
Pressure Feed Spray Guns
W 206
Know more
Request A Quote
Pressure Feed Spray Guns
Pressure Feed Spray Guns

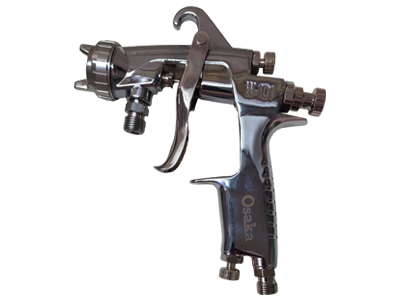

Pressure Feed Spray Paint Gun W 101
Request A Quote

This Gun can rotate at any direction during painting, This gun is light weight, Fluid path is Stainless Steel, Air adjusting knob is built on gun itself.


Technical Specification
  • Model: W 101
  • Type: Pressure Feed
  • Std. Nozzle: 0.8/1/1.3 mm
  • Air Pressure: 3 - 5 Kgf/Cm2
  • Air Comsuption: 145 L/Min
  • Fluid Output: 145 MI/Min
  • Pattern Width: 170 mm
  • Air Inlet: 1 / 4" BSP
  • Paint Inlet: 1 / 4" BSP
  • Weight of Gun: 350 GMS
  • Needle & Nozzle: Stainless Steel
Pressure Feed Spray Guns

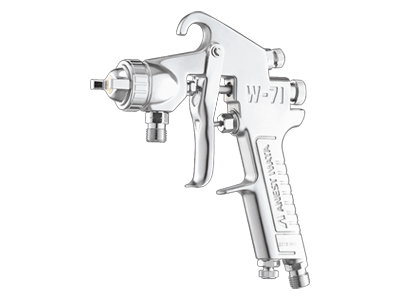

Pressure Feed Gun W 71
Request A Quote
Pressure Feed Gun W 71

Pressure Feed Spray Gun OSAKA: W 71

We would like to introduce ourselves as suppliers of High performance Spraying painting systems. Our range of products includes HVLP Spray Painting guns-pressure/gravity type, Airless Spray painting equipment, Electric Airless Building Spray Painting Equipment, Extension Spray Gun, Electrostatic Liquid Spray Painting equipment, Powder coating equipment, Booth, Oven, Double Diaphragm Pumps, stainless Steel Paint Containers, Pressure feed container, Piston Pumps, Pneumatic Stirrer / Agitator, Auto Guns, Air brush gun, Mini air compressor, paint hoses, Paint Booth Additives etc.


Technical Specification
  • Model: W-77
  • Type: Pressure
  • Standard Nozzle: 2.00 mm
  • Operating Air Pressure: 2-4 Kgf/cm²
  • Air Consumption: 90 L/Min
  • Fluid Output: 370 Ml/Min
  • Pattern Width: 385 mm
  • Air Inlet: 1/4" BSP
  • Paint Inlet: 3/8" BSP
  • Weight of the Gun: 650 gms
Pressure Feed Spray Guns

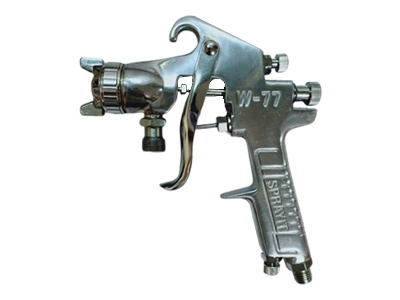

Pressure Feed Gun W 77
Request A Quote

Pressure Feed Spray Gun OSAKA: W 77

We would like to introduce ourselves as suppliers of High performance Spraying painting systems. Our range of products includes HVLP Spray Painting guns-pressure/gravity type, Airless Spray painting equipment, Electric Airless Building Spray Painting Equipment, Extension Spray Gun, Electrostatic Liquid Spray Painting equipment, Powder coating equipment, Booth, Oven, Double Diaphragm Pumps, stainless Steel Paint Containers, Pressure feed container, Piston Pumps, Pneumatic Stirrer / Agitator, Auto Guns, Air brush gun, Mini air compressor, paint hoses, Paint Booth Additives etc.


Technical Specification
  • Type: Suction Feed Type
  • Nozzle: 1.0 / 1.3 mm / 1.5 mm
  • Suction Cup: Aluminium
  • Cup Capacity: 500 ml
  • Air Pressure: 2-4 Kgf/cm²
  • Air Consumption: 115 LPM
  • Fluid Output: 270 ml
  • Pattern Width: 310 mm
  • Air Inlet: 1/4 " BSP
  • Fluid Inlet: 1/4 " BSP
  • Weight of Gun: 350 gms
Pressure Feed Spray Guns

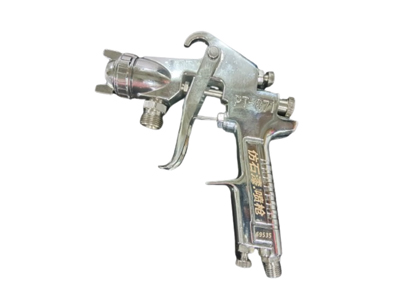

Pressure Feed Gun PT 871
Request A Quote

This Gun can rotate at any direction during painting, This gun is light weight, Fluid path is Stainless Steel, Air adjusting knob is built on gun itself.

Technical Specification
  • Model: PT 871
  • Type: Pressure Feed
  • Std. Nozzle: 1.4 mm
  • Air Pressure: 2 - 4 Kgf/Cm2
  • Air Comsuption: 75 L/Min
  • Fluid Output: 270 MI/Min
  • Pattern Width: 425 mm
  • Air Inlet: 1 / 4" BSP
  • Paint Inlet: 1 / 4" BSP
  • Weight of Gun: 550 GMS
  • Needle & Nozzle: Stainless Steel
Pressure Feed Spray Guns

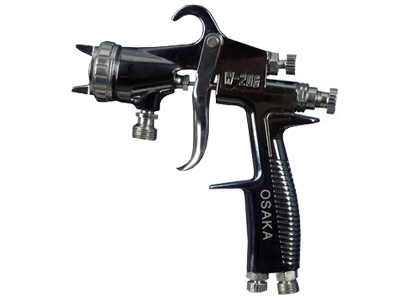

Pressure Feed Gun W 206
Request A Quote
Pressure Feed Gun W 206

Pressure Feed Spray Gun OSAKA: W 206
High performance Spray gun with high transfer efficiency of Paint. Mainly suitable for Bigger Jobs & mass production painting work, Continuous spray painting work.

This Gun can rotate at any direction during painting, This gun is light weight, Fluid path is Stainless Steel, Air adjusting knob is built on gun itself.


Technical Specification
  • Model: W 206
  • Type: Pressure Feed
  • Standard Nozzle: 1.3 mm
  • Operating Air Pressure: 3-4 Kgf/cm²
  • Air Consumption: 145 L/Min
  • Fluid Output: 350 Ml/Min
  • Pattern Width: 450 mm
  • Air Inlet: 1/4" BSP
  • Paint Inlet: 3/8" BSP
  • Weight of the Gun: 450 gms
  • Needle & Nozzle: Stainless Steel
